22′ Double-A Tri-Axle Deck-Over Equipment Trailer (24,000LBS GVW – 3:7K Axles)

22′ Double-A Tri-Axle Deck-Over Equipment Trailer (24,000LBS GVW – 3:7K Axles)

Flatdeck Trailers
MADE IN CANADA
QUICK SPECS

Empty Weight: 5100 lbs.

Dimensions: 22' (17' Flat + 5' Tail)

Payload: 18,900 lbs.

Axle(s): (3) 7000# Spring Axles

GVW: 24,000#

Brakes: Electric

Price
$19,500 + Taxes
SALE
CHECK AVAILABILITY

CALL US AT 604 856 1988

Print
Email
CHECK AVAILABILITY

CALL US AT 604 856 1988

Print Unit Info
Email
CHECK AVAILABILITY
Apply For Financing
Print Unit Info

FURTHER FEATURES

  • • Made in Canada (Alberta)
  • • 12" I-Beam Main Frame
  • • 3" Channel Crossmembers, 16" O/C
  • • (3) 7000# Spring Axles
  • • Electric Brakes
  • • ST235/80R16E Radial Tires

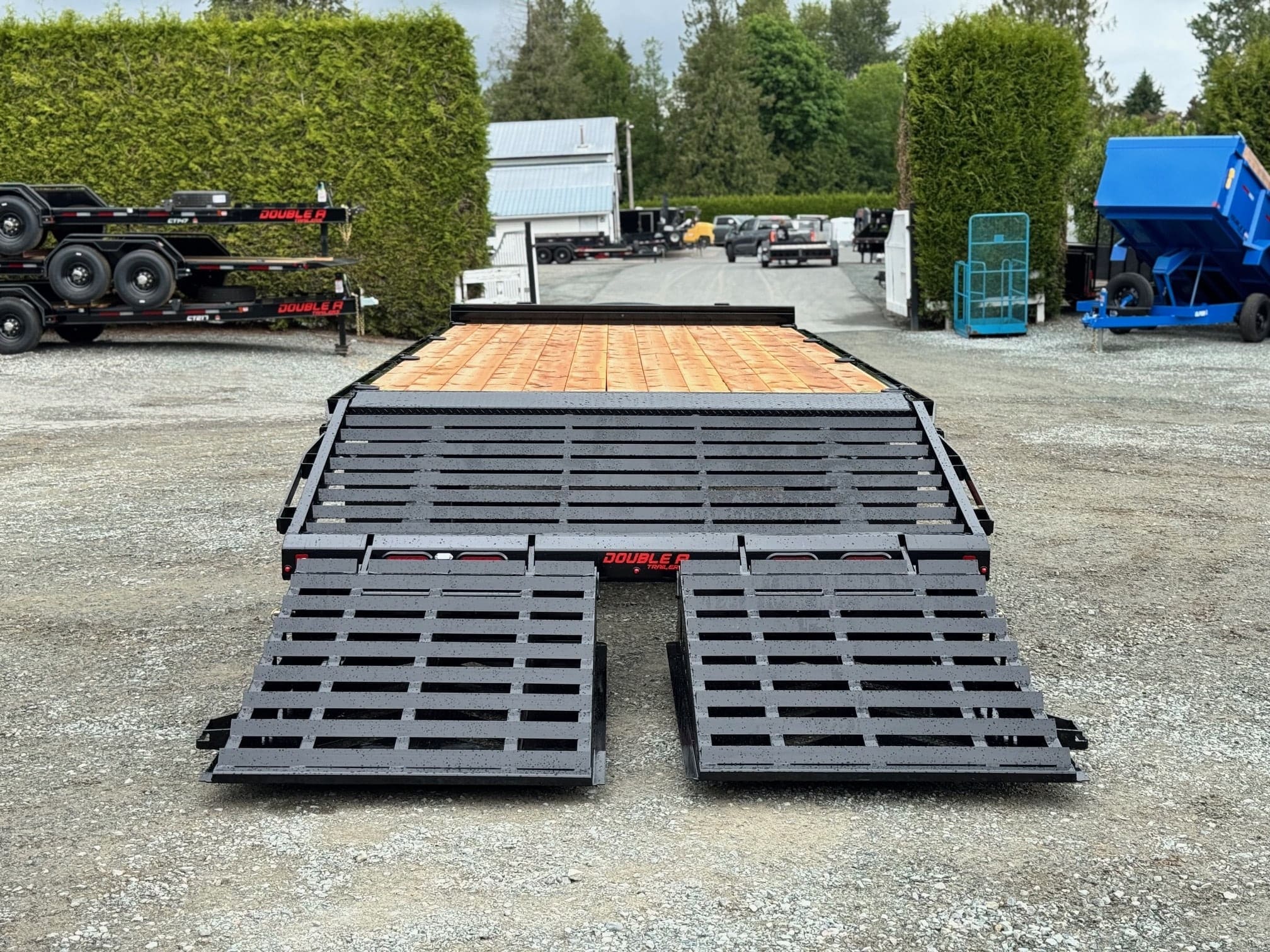

  • • 5' Beavertail Flip-Over Ramps w/ Spring Assist
  • • (2) 12,000# Jacks
  • • Adjustable Pintle or 2-5/16" Ball Coupler

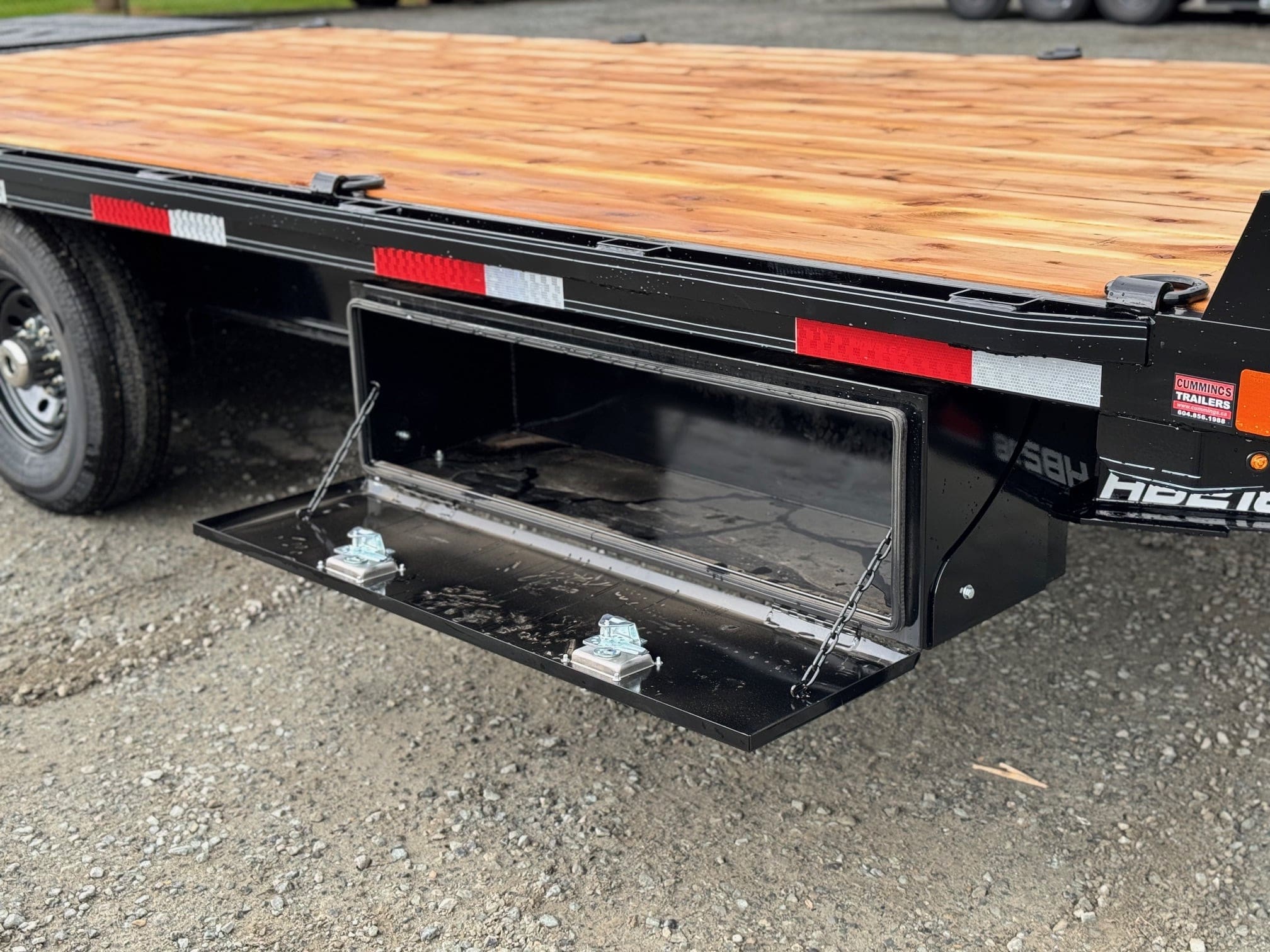

  • • (2) 48" Undermount Toolboxes
  • • (8) Welded D-Rings

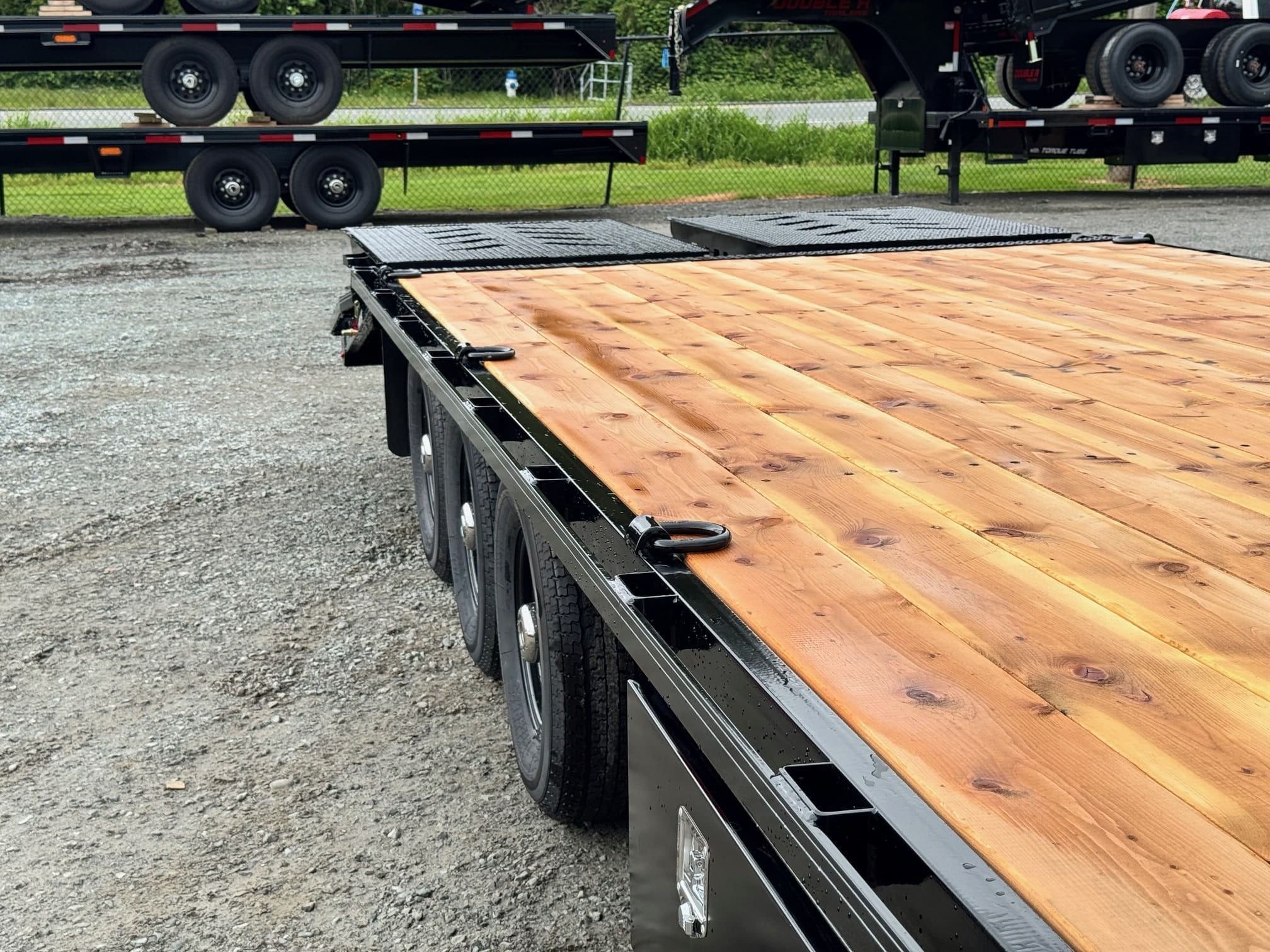

  • • Heat Treated Douglas Fir Decking
  • • Rubber Mounted LED Lights
  • • -65C Arctic Rated Wiring Harness
  • • Front Mounted Spare Tire
  • • 6-Stage Powder Coating Process w/ Zinc Epoxy Primer
