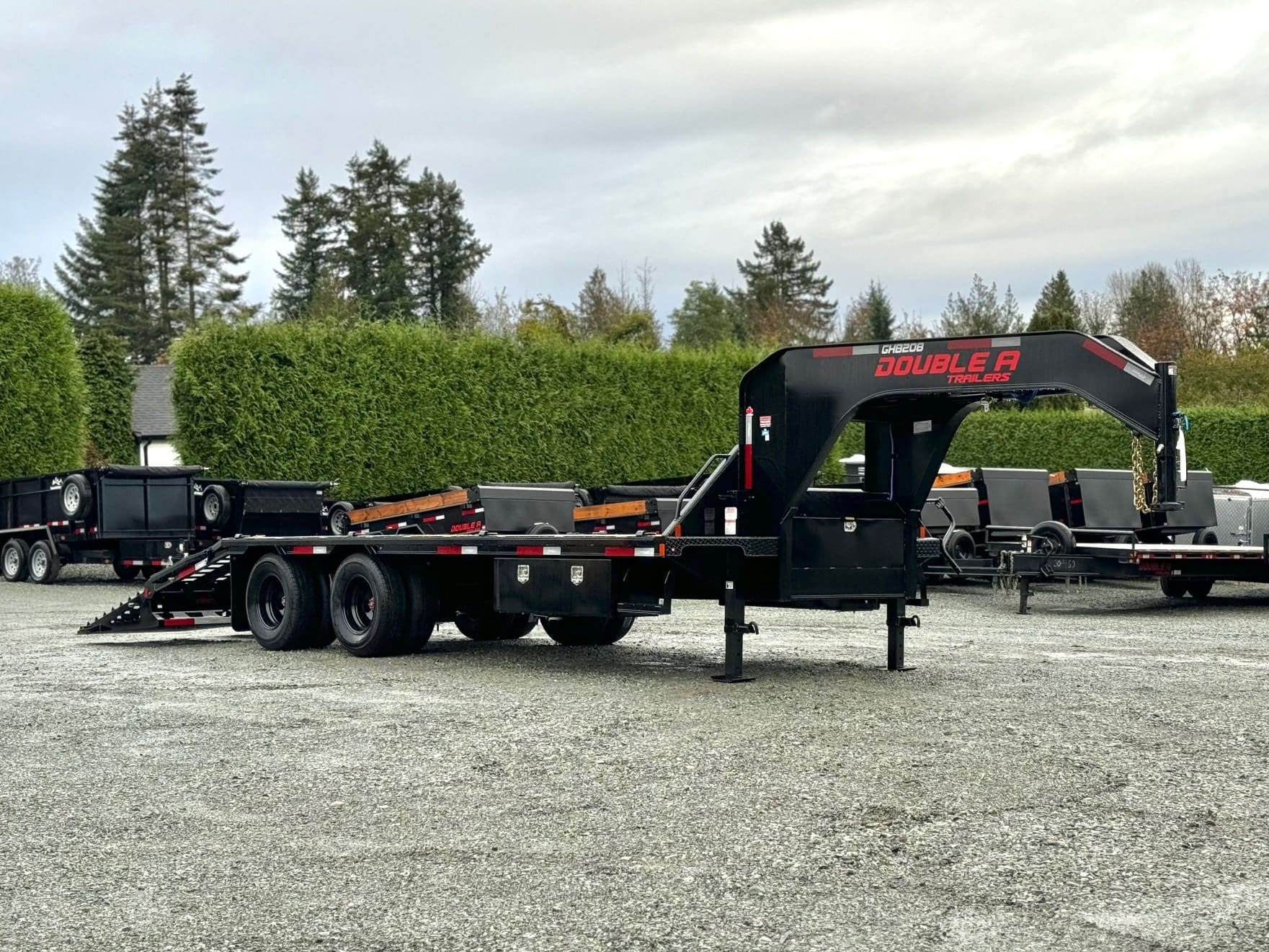

22′ Double-A Tandem Dually Gooseneck (25,000LBS GVW – 2:10K Axles)

22′ Double-A Tandem Dually Gooseneck (25,000LBS GVW – 2:10K Axles)

Flatdeck Trailers
MADE IN CANADA
QUICK SPECS

Empty Weight: 6000 lbs.

Dimensions: 22' (17' Flat + 5' Tail)

Payload: 19,000 lbs.

Axle(s): (2) 10,000# Oil Bath

GVW: 25,000#

Brakes: Electric

Price
$25,000 + Taxes
SALE
CHECK AVAILABILITY

CALL US AT 604 856 1988

Print
Email
CHECK AVAILABILITY

CALL US AT 604 856 1988

Print Unit Info
Email
CHECK AVAILABILITY
Apply For Financing
Print Unit Info

FURTHER FEATURES

  • • Alberta Manufactured
  • • 12" I-Beam Main Frame & Neck
  • • 3" Channel Crossmembers on 16" Centers
  • • 5'' Lace Rail with Pockets and Rub Rail
  • • (2) 10,000# Spring Axles
  • • Electric Brakes
  • • 235/80R16" Radial Tires

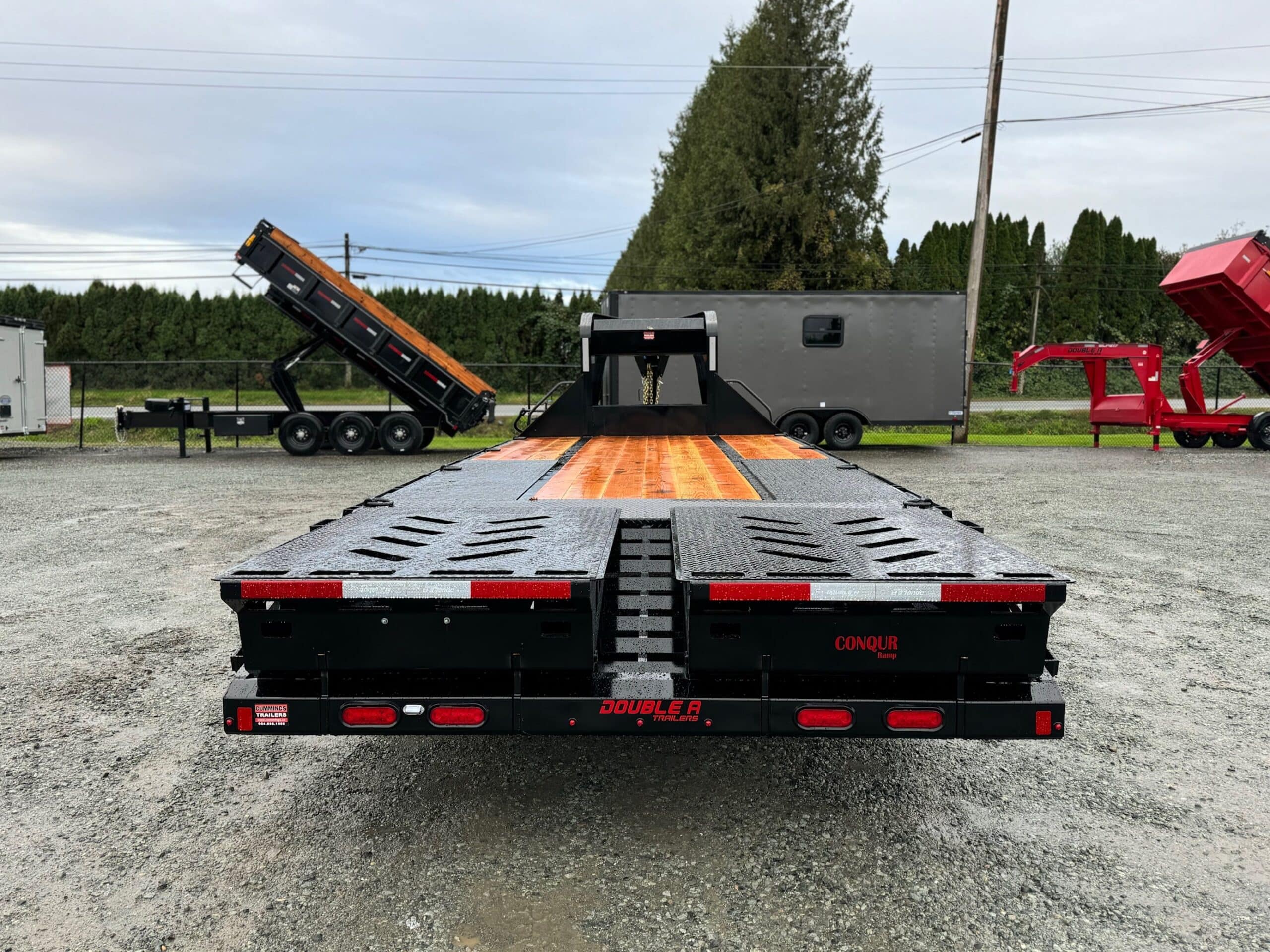

  • • 5' Beavertail Flip-Over Ramps w/ Spring Assist
  • • (2) 12,000# Jacks

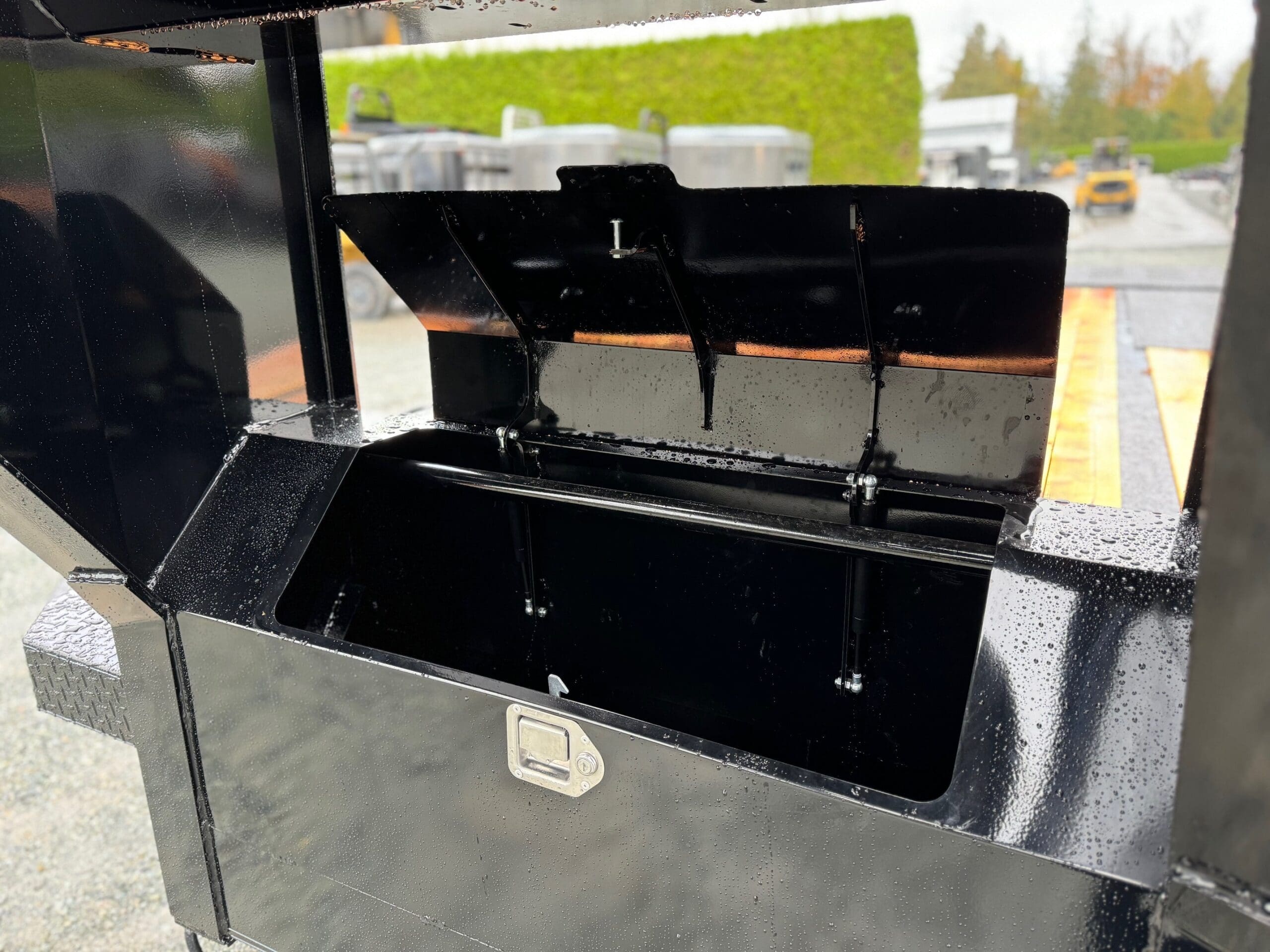

  • • (2) 48" Undermount Toolboxes
  • • (8) D-Rings
  • • Heat Treated Douglas Fir Decking
  • • Rubber Mounted LED Lights
  • • -65C Arctic Rated Wiring Harness
  • • Steps with Grab Rails on Each Side

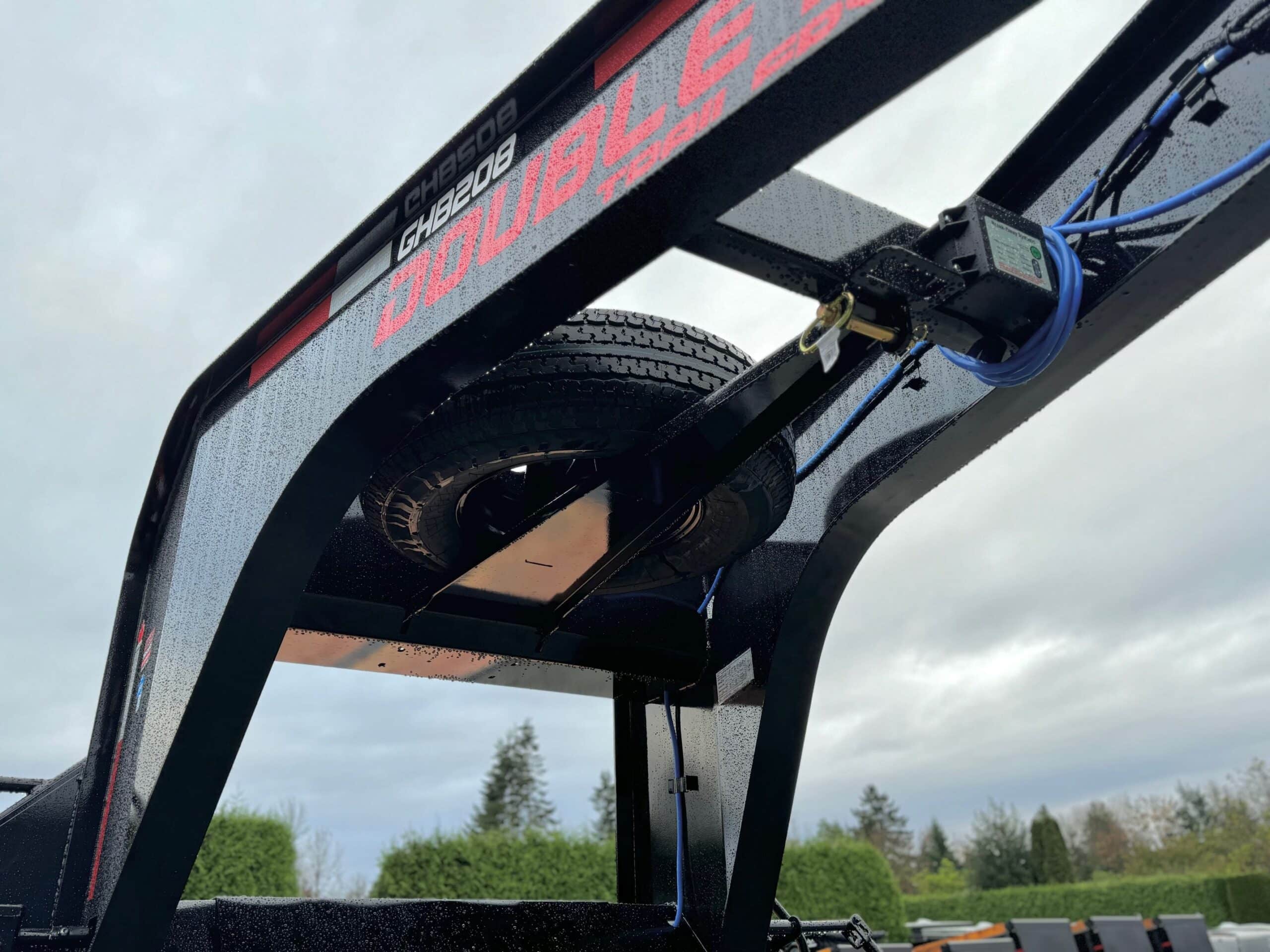

  • • Mounted Spare Tire
  • ** 6-Stage Powder Coating Process **
  • Step 1: Steel-Shot Blasting
  • Step 2: Phosphate Metal Pretreatment Wash & Rinse
  • Step 3: Forced Air Dry-Off Oven
  • Step 4: Zinc Epoxy OneCure Primer
  • Step 5: Sherwin Williams OneCure Powder Topcoat
  • Step 6: Oven Cured at Over 425 Degrees
